Product description

The optimal size of Grill Cabin 9.2 m2 is one of the most popular products of the company and is a great place to relax, have a small party or family meetings. An excellent grille ensures comfort and environmental distinction. It can be painted in the desired color and therefore perfect for your garden. Therefore, the double version of this product gives you twice as much joy and the ability to have more comfort for your leisure time.

High-quality materials ensure the longevity of a grill house and easy use. Cabin walls are made of rounded spruce boards. A roof is made of six elements and covered with bitumen shingles (different colors can be selected). Cabin has 7 double glazed windows, 2 of which opens. Besides that, doors are decorated with an original hexagonal window. Also, there are five benches in the cabin; two of these benches easily transform into holding benches: just turn over the additional board. Floor is easily assembled from separate components.

There is a convenient wood- or charcoal-fired grill with a table around it inside the cabin. Also one adjustable cooking platform and two special platforms for a kettle, frying pan, etc. can be found. Above the grill there is an adjustable chimney. Finally, the cabin is lockable, and there is a small porch with a roof at the entrance.

People 25-30persons
Timber Spruce
Shape Connected 2 Hexagons
Room Two Rooms inside
Inside area 22.2square meters
Total height 3062mm
Wall height 1155mm
Floor thickness 18mm
Roof thickness 18mm
Wall thickness 45mm
External dimension 8769 x 3760mm
Door size 780 x 1500mm
Window size 880 x 510mm
Wall, floor, roof panels from spruce;
Roof covered with bitumen shingles of your selected color;
Inside standard grill with cooking platforms;
Table around the grill;
Adjustable chimney;
7 double glass windows (2 of them are opening);
Door with a lock and hexagon window;
5 inside benches from spruce (2 of them are folding benches);
Cushions for benches of your selected color;
Connection’s size: 1.95 x 1.99 m.
Assembling time 15hours
Size of pallets (LxWxH)  1st pallet: 4 x 1.2 x 2.55 m; 2nd pallet: 2.5 x 1.2 x 2.5m
Weight 2800kg

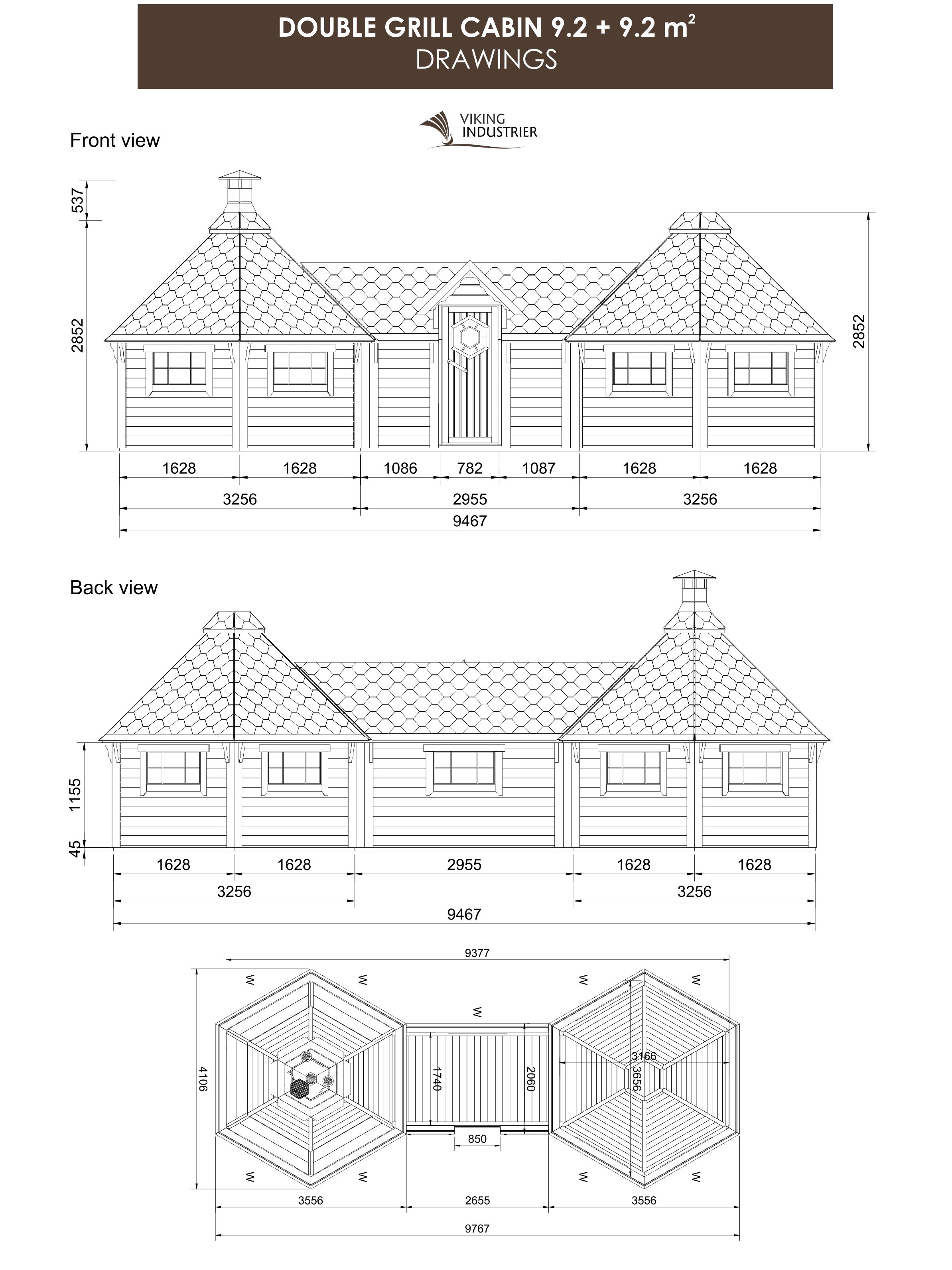

Grill Cabin is delivered to the customer fully complete, with detailed assembly instructions and drawings, and packed on a pallet (KIT). Grill Cabin components include six wall panels, six roof panels and three floor panels. Two people can easily assemble Double Grill cabin 9.2 + 9.2 m²  in 15 hours.

It is very important to have a proper foundation for your Grill Cabin 9.2 m2 +9.2 m2.Therefore we recommend making the foun­dation according to the sketches here. First of all, foundation must be prepared according to the landscape and ground conditions. Consult a qualified builder or an engineer to prepare a proper foundation, which fits your location. Make sure to complete the site preparation and the foundation before unpacking and as­sembling the Grill Cabin 9.2 m2 +9.2 m2.

"Premium" 6-corner grill and chimney

"Viking" Grill and Chimney

Standard 6-corner Grill and Chimney

Luxury Grill and Chimney

Without Grill and Chimney (available)

Available roof colors

Available roof colors - Black Bitumen black shingles
Available roof colors - Green Bitumen green shingles
Available roof colors - Red Bitumen red shingles

The Color of Cushions: blue or brown

Roof Panel with Window for Grill Cabin

Available from 1 to 4 units.

Opening windows for double grill cabin 9.2+9.2

  • 2 opening windows from 7 (standard) ;
  • 3 opening windows from 7 (optional) ;
  • 4 opening windows from 7 (optional) ;
  • 5 opening windows from 7 (optional) ;
  • 6 opening windows from 7 (optional) ;
  • 7 opening windows from 7 (optional).

Insulated floor

Available

Walls height

  • One extra board in wall (the height of board - 145 mm )
  • Two extra boards in wall

Insulated roof

Available

Tongue And Groove Floors

Available

Blue Curtains SET

Brown Curtains SET

Shelf for Grill cabin

Drawer

Firewood Ring

Grill cover

Wooden dishes and flatware set**

Reindeer hides

Flower Pot for Pavilion and Grill

Stainless steel door sill

Door Stopper

**Available "Basic", "Optimal" or "Luxury" set.

USAGE.

  • The first time you'll use your Grill the surfaces of the new product that are in direct contact with the flames may create a smoky smell when heating up. We advise to keep the door open during the first use and not to cook until the smell disappears.
  • When burning wood we recommend to use Grill table metal safety fence.
  • We suggest you to use only firewood or briquettes. Larger burning objects can be added later when the fire is burning well. We advise to use objects no larger than 300 mm.
  • A sufficient flow of fresh air is the most essential aspect of smoke exhaustion. At least as much fresh air should come in as goes out with the smoke.
  • If the Grill is generating a lot of smoke, open the door of the Grill Cabin and make sure that the wood is dry and without a bark. Put in additional dry wood if needed.
  • Keep decorations away from your Grill. Hanging decorations look pretty, but provide fuel for a fire.
  • Keep water nearby for flare-ups.
  • Keep a fire extinguisher within a couple steps of your Grill. And KNOW HOW TO USE IT!
  • Don't leave a Grill unattended. Don't allow kids or pets to play near the Grill. Never try to move hot Grill, and remember the Grill will stay hot for at least an hour after its use.
  • Do not sleep in a Grill Cabin when the fire is on!
  • Use protective gloves when handling hot cooking plates. Never move or service an operating Grill.
  • Please note, that the metal Grill may have sharp edges and the steel parts of the Grill heats up when the fire is burning, therefore there is risk to harm or burn yourself.
  • Remove ashes from the Grill after they have cooled down.
  • Make sure you give yourself time to clean your Grill after each use in order to ensure maximum hygiene and proper functioning.

MAINTENANCE.

You should not forget that wood is a natural material, it changes and moves depending on weather conditions. Large and small cracks, color tone differences and other changes, as well as a changing structure of wood are not defects, but a result of wood growing and a feature of wood as a natural material. Natural wood (not impregnated) becomes grayish after being left untouched for a while, and can turn blue and become moldy. You should immediately process it with wood preservative to protect the wooden parts of our manufactured products.

We definitely recommend that you process the door and windows with a wood preservative, and do it on both sides (inside and outside), because the doors and windows can deform. Also, you should pre-treat the floor panels with a wood preservative, especially the bottom sides of the panels, to which you will no longer have access when the Cabin is assembled. Only this will prevent moisture penetration.

In general, we recommend for the conclusive finishing a weather protection paint that will protect wood from moisture and UV radiation after the Cabin is assembled. Consult a specialist regarding paints suitable for unprocessed softwood and follow the paint manufacturer's
instructions. Your Grill Cabin service life will be much longer after it will be properly painted. We recommend that you inspect your Cabin thoroughly once every six months.

Customer should make sure that air circulation is working in winter as well. It means that air pipes are open all year around and that moisture gets out from the product (through chimney). Customer should also make sure that product´s roof is not covered by snow. A layer of snow cannot be thicker than 20 cm on the roof and the flue should never be covered by snow or closed manually.
