Product description

Optimal size Pavilion 14.9 m2 is perfect for gatherings of a family and a group of close friends. It's a cozy place to rest or have a small party. Inside the Pavilion you can enjoy a light coming through big windows and glazed doors as well as a grill, which is installed in the middle. So anyone would be happy to spend his/her time in a bright Pavilion while eating delicious grilled food and making a weekend of it.

Pavilion walls are made of rounded spruce boards with the dimensions 45 x 145 mm. A roof of the pavilion is covered with bitumen shingles, and there are seven double glazed windows, three of which open. Besides that, the doors are double-hinged and glazed.

People 14 - 20persons
Timber Spruce
Shape Octagonal
Room One Room inside
Inside area 14.9square meters
Diameter 4651mm
Total height 3800mm
Wall height 1880mm
Floor thickness 46mm
Roof thickness 67mm
Wall thickness 45mm
External dimension 4242 x 4242mm
Door size 1020 x 1600mm
Window size 1020 x 1540mm
Wall, roof, floor panels;
Roof covered with bitumen shingles of your selected color;
Inside grill with cooking platforms and tables around the grill;
Adjustable chimney;
7 double glass windows (3 of them are opening);
Double doors with a lock and windows;
7 inside benches (2 of them are folding benches);
Cushions for the benches.
Assembling time 8hours
Size of pallets (LxWxH) 3.5 x 1.2 x 2.55m
Weight 1800kg

Standard grill is packed with the pavilion together but we strongly recommend to choose packing on a separate pallet of size (L x W x H): 1.20 x 0.80 x 1.25 m.
"Viking" grill is packed only on a separate pallet. Size (L x W x H): 1.20 x 0.80 x 1.25 m.
"Luxury" grill is packed only on a separate pallet of size (L x W x H): 1.20 x 0.80 x 1.25 m.
"Premium" grill is packed only on a separate pallet of size (L x W x H): 1.20 x 0.80 x 1.25 m.

~ We pack all accessories on the same pallet if it is possible. Otherwise all accessories will be packed on a separate pallet.

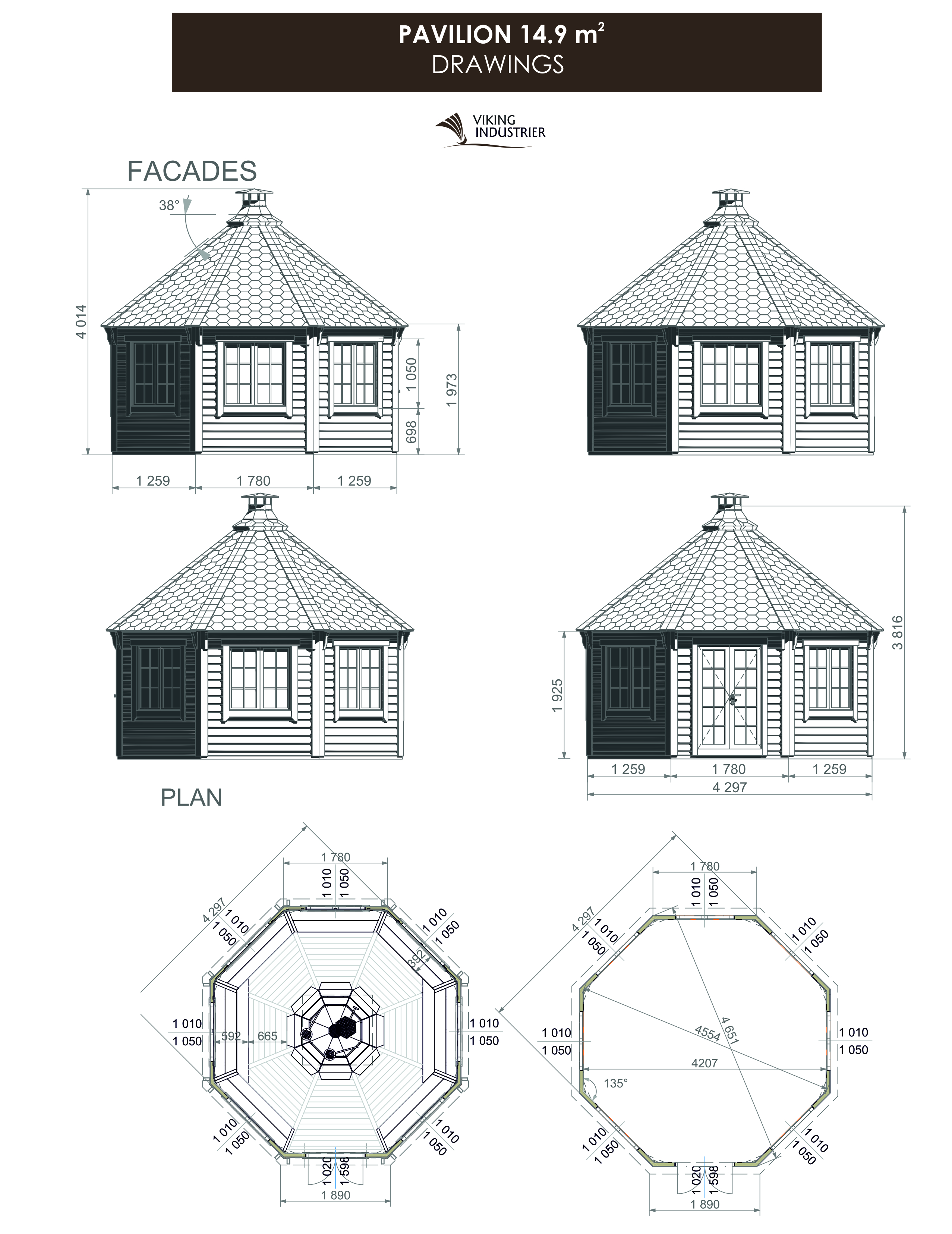

It is very important to have a proper foundation for your Pavilion. Therefore we recommend making the foundation according to the sketches here.
First of all, foundation must be prepared according to the landscape and ground conditions. Consult a qualified builder or an engineer to prepare a proper foundation, which fits your location. Make sure to complete the site preparation and the foundation before unpacking and assembling the Pavilion.
Also in order to avoid a smoke in the Pavilion we strongly recommend installing 100-120 mm diameter ventilation pipes on 2 or 3 different foundation sides. Please note that these ventilation pipes must be covered so that no rain, leaves or anything else get there.

"Premium" 8-corner Grill and Chimney set

"Viking" Grill and Chimney

Standard 8-corner Grill and Chimney

Luxury Grill and Chimney

Without Grill and Chimney (available)

Available roof colors

Available roof colors - Black Bitumen black shingles
Available roof colors - Green Bitumen green shingles
Available roof colors - Red Bitumen red shingles

The Color of Cushions: blue or brown

Opening windows for Pavilion

  • 3 opening windows from 7 (standard);
  • 4 opening windows from 7;
  • 5 opening windows from 7;
  • 6 opening windows from 7;
  • 7 opening windows from 7.

Flower Pot for Pavilion and Grill

Firewood Ring

Grill cover 8 corners

Grill table safety fence 8 corners*

Brown curtains set for Pavilion

White linen curtains set for Pavilion

Drawer

Reindeer hides

Stainless steel door sill

Wooden dishes and flatware set**

GRILL USAGE.

  • The first time you'll use your Grill the surfaces of the new product that are in direct contact with the flames may create a smoky smell when heating up. We advise to keep the door open during the first use and not to cook until the smell disappears.
  • When burning wood we recommend to use Grill table metal safety fence.
  • We suggest you to use only firewood or briquettes. Larger burning objects can be added later when the fire is burning well. We advise to use objects no larger than 300 mm.
  • A sufficient flow of fresh air is the most essential aspect of smoke exhaustion. At least as much fresh air should come in as goes out with the smoke.
  • If the Grill is generating a lot of smoke, open the door of the Pavilion and make sure that the wood is dry and without a bark. Put in additional dry wood if needed.
  • Keep decorations away from your Grill. Hanging decorations look pretty, but provide fuel for a fire.
  • Keep water nearby for flare-ups.
  • Keep a fire extinguisher within a couple steps of your Grill. And KNOW HOW TO USE IT!
  • Don't leave a Grill unattended. Don't allow kids or pets to play near the Grill. Never try to move hot Grill, and remember the Grill will stay hot for at least an hour after its use.
  • Do not sleep in Pavilion when the fire is on!
  • Use protective gloves when handling hot cooking plates. Never move or service an operating Grill.
  • Please note, that the metal Grill may have sharp edges and the steel parts of the Grill heats up when the fire is burning, therefore there is risk to harm or burn yourself.
  • Remove ashes from the Grill after they have cooled down.
  • Make sure you give yourself time to clean your Grill after each use in order to ensure maximum hygiene and proper functioning.

MAINTENANCE.

You should not forget that wood is a natural material, it changes and moves depending on weather conditions. Large and small cracks, color tone differences and other changes, as well as a changing structure of wood are not defects, but a result of wood growing and a feature of wood as a natural material. Natural wood (not impregnated) becomes grayish after being left untouched for a while, and can turn blue and become moldy. You should immediately process it with wood preservative to protect the wooden parts of our manufactured products.

We definitely recommend that you process the door and windows with a wood preservative, and do it on both sides (inside and outside), because the doors and windows can deform. Also, you should pre-treat the floor panels with a wood preservative, especially the bottom sides of the panels, to which you will no longer have access when the Pavilion is assembled. Only this will prevent moisture penetration.

In general, we recommend for the conclusive finishing a weather protection paint that will protect wood from moisture and UV radiation after the Pavilion is assembled. Consult a specialist regarding paints suitable for unprocessed softwood and follow the paint manufacturer's
instructions. Your Pavilion service life will be much longer after it will be properly painted. We recommend that you inspect your Pavilion thoroughly once every six months.

Customer should make sure that air circulation is working in winter as well. It means that air pipes are open all year around and that moisture gets out from the product (through chimney). Customer should also make sure that product´s roof is not covered by snow. A layer of snow cannot be thicker than 20 cm on the roof and the flue should never be covered by snow or closed manually.
